KNX 10.1’’ Touch Screen
The WinSmartHome 10.1-inch KNX touch panel is a wall-mounted central control interface designed for KNX smart home and building automation projects. It combines a 1280 × 800 IPS touchscreen, rotary control, physical buttons, Ethernet, dual-band Wi-Fi and local relay outputs in one panel. Designed for villas, apartments, hotels and commercial projects, the panel can provide a central interface for compatible KNX lighting, HVAC, curtain, scene and access-control functions. Project-specific functions, certificates, UI requirements and integration conditions should be confirmed before ordering.
- KNX Version – Verified Specifications
- Processor: R818 Cortex-A53 quad-core, 1.5 GHz; Memory: 1 GB RAM / 8 GB storage
- Display: 10.1-inch HD IPS LCD, 1280 × 800; G+G multi-touch capacitive screen
- Power supply: 21-30 V DC; Smart home protocol: KNX
- Connectivity: 2.4/5 GHz Wi-Fi, Bluetooth, 10/100 Mbps Ethernet, USB Type-C
- Interfaces: +KNX-, +AUX-, TF card up to 32 GB, two-channel relay outputs (L1/L2)
- Software: Android 10.0 with HomeOS 6.0 and OTA update support
- Audio and access: 2 × 1.0 W output, 8 ohm impedance, whole-house and point-to-point calling, access-control support
- Controls: two physical front buttons, one rotary switch and one side power/wake/sleep button
- Dimensions: 289 × 156 × 11 mm; back box and recommended cutout: 86 × 86 × 70 mm; flush-mounted installation

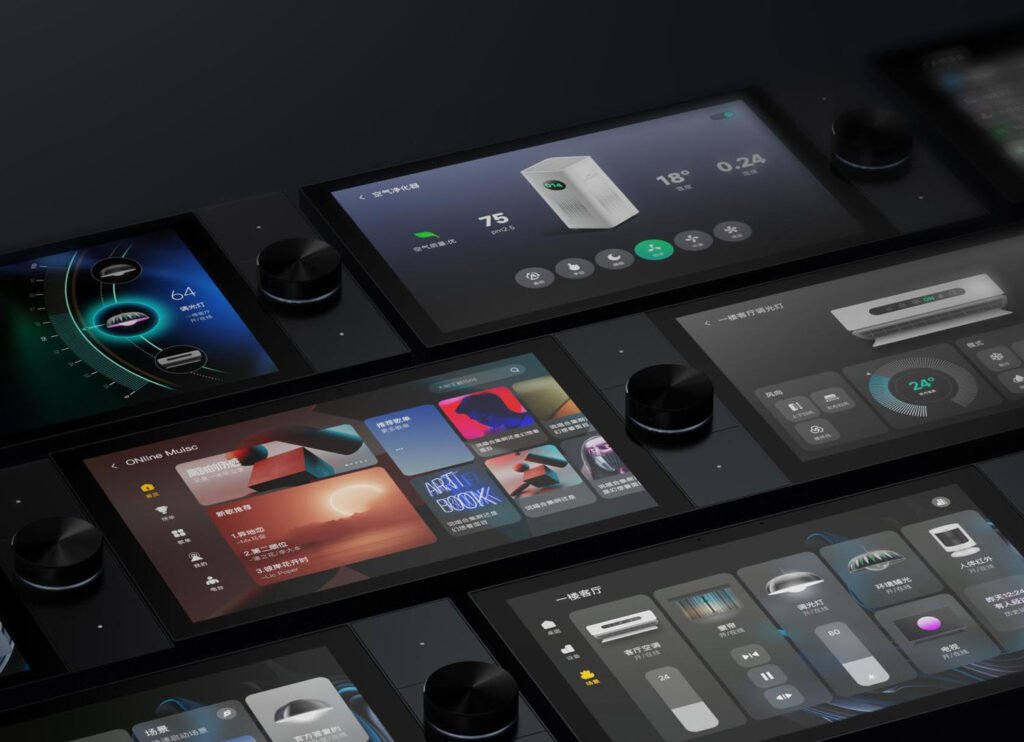

Central KNX Control Interface
The panel is designed as a central user interface for KNX projects. Available functions depend on the ETS configuration, connected KNX equipment and project engineering design. Confirm the required datapoints and control scope before ordering.

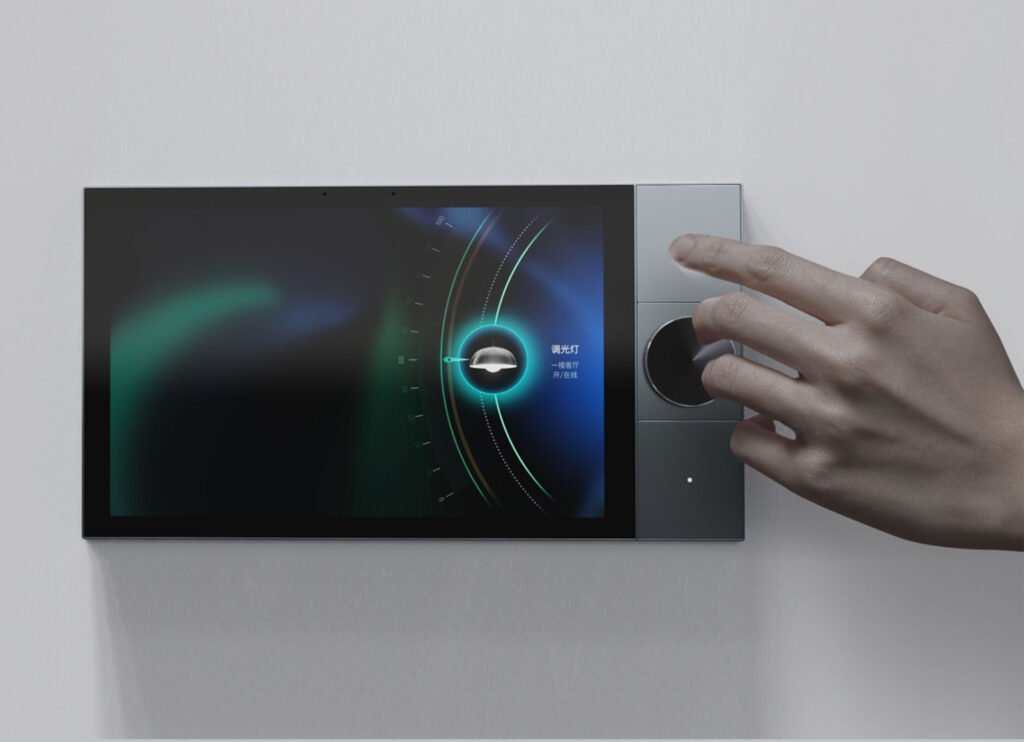

Touch, Button and Rotary Control
Users can interact through the 10.1-inch touchscreen, two physical front buttons and one rotary switch. The final button and rotary-control functions should be defined according to the project configuration.
Network and Local Interfaces
Dual-band Wi-Fi, 10/100 Mbps Ethernet, Bluetooth, USB Type-C and TF-card support provide flexible connectivity. The KNX version also includes a KNX interface, an auxiliary interface and two local relay outputs.
Calling, Audio and Access Control
The specification lists whole-house calling, point-to-point two-way calling and access-control support. Compatibility with a specific intercom or access-control system must be confirmed during project evaluation.

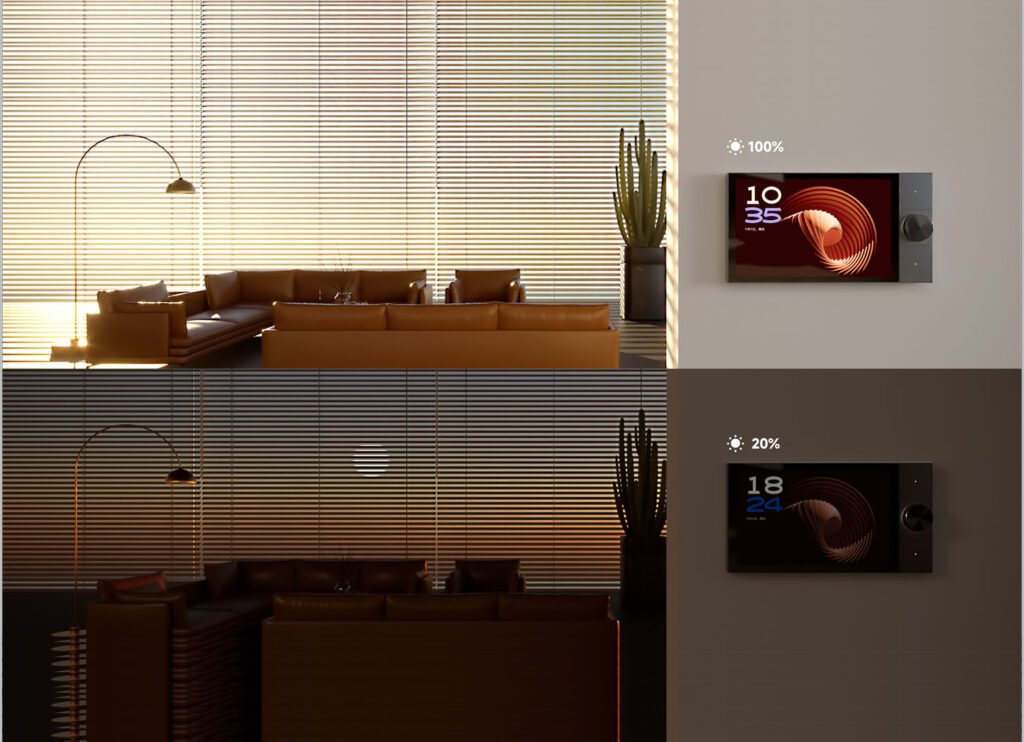

Application Scenarios and Selection Checks
Luxury villas and residences – central interface for compatible KNX lighting, HVAC, curtains and scenes. Hotels and hospitality – guest-room and common-area control subject to project engineering. Commercial offices and public buildings – centralized user control for defined KNX functions. Before ordering, confirm the KNX topology, power-supply arrangement, relay load requirements, network availability, back-box dimensions, UI language, certificates, quantity and delivery schedule.
Explore our KNX product range and KNX smart switches, or send us your project type, required control functions, market, estimated quantity and installation requirements. We will help check the appropriate version, interfaces, preliminary compatibility, sample options and quotation requirements. Request a KNX touch panel technical review and quote.
